Summary: The lifting weight of JKBK flexible light combined suspension crane produced by Longma is 125 kg-2000 kg. JKBK flexible light combined suspension crane includes JKBK-D monorail suspension crane, JKBK-LD single-beam suspension crane, JKBK-LS double-beam suspension crane, JKBK-LSS telescopic beam suspension crane, JKBK-LM stacker and other forms. It has a wide range of applications, especially for modern production and transportation lines.

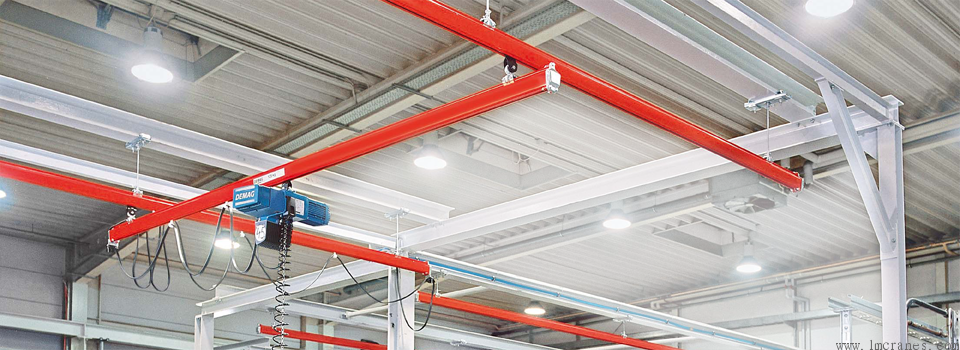

JKBK Flexible Single Girder Suspension Crane



Product characteristics:

1. Reasonable installation size, light weight

JKBK flexible single-beam suspension crane is composed of KBK standard components, which can enable you to quickly and reliably realize the delivery of materials in specific areas and the accurate positioning of various components.

2. Economic and efficient-nbsp;

JKBK single-beam suspension crane can be simply suspended on the roof or superstructure of the building. The crane track does not need additional auxiliary support. Whether it serves part or all of the workshop, it can be installed simply and reliably with low cost.

3. Safety and reliability-nbsp;

Because of the light weight of the equipment and the light operation of the trolley, JKBK single beam suspension crane can easily realize manual movement, and can quickly and reliably transport those bulky workpieces.

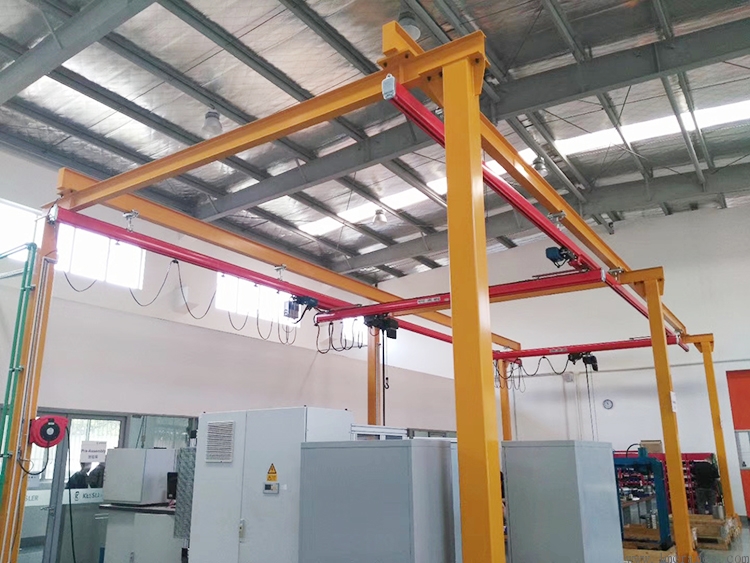

JKBK single beam suspension crane: 1. Lifting weight: 1000kg & nbsp; 2. Span: 6m < br />.


The product characteristics of JKBK flexible light combined suspension crane are summarized as follows:

1. Good reliability and stability

The components of JKBK flexible light combined suspension crane system are all standard modules, which can ensure large-scale and high-quality production, so the system is very reliable. The main body of the system module is three kinds of cold-rolled profiles with high strength, good rigidity and light self-weight, which ensures the stability of the system.

2. Strong adaptability

JKBK suspension crane system can be flexibly designed and installed according to the needs of each station in the factory. From fixed-point transportation to high accuracy, multi-point, multi-beat automatic transmission lines can be assembled at will. It can be used in newly designed factory buildings, as well as in the renovation and extension of the system.

3. Easy to install, economical and efficient

JKBK suspension crane system is easy to install and debug. JKBK profiles and standard modules can be used only by bolt connection. It can save the space and area of the factory, thus reducing energy consumption and improving enterprise efficiency. The system can be operated manually or automatically or semi-automatically with high efficiency.

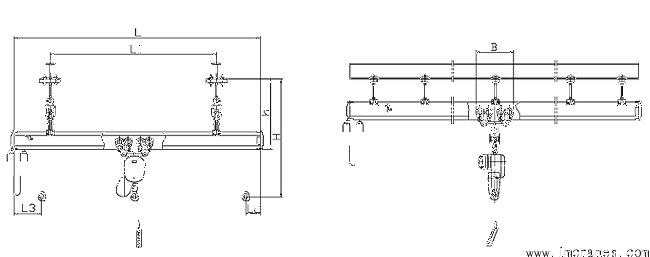

Parameter list



Lifting weight / dimension
One hundred and twenty-five
Two hundred and fifty
Five hundred
One thousand
L
Nine thousand
Eight thousand
Six thousand and five hundred
Four thousand
L1
Eight thousand and five hundred
Seven thousand and five hundred
Six thousand
Three thousand and five hundred
L2
One hundred and seven
One hundred and seven
Two hundred and thirty-two
Two hundred and thirty-two
L3
Four hundred and eighty-seven
Four hundred and thirty-seven
Five hundred and twelve
Four hundred and twelve
B
One hundred and seventy-three
One hundred and seventy-three
Four hundred and twenty-three
Four hundred and twenty-three
H
One thousand and two hundred
One thousand two hundred and twenty
One thousand and three hundred
One thousand four hundred and thirty
H
Seven hundred and thirty
Seven hundred and thirty
Seven hundred and thirty
Seven hundred and thirty
